F305 Tracker
aidriving F305 is an amazing GPS tracker with latest GPS tracking technology, which can ensure accuracy less than 30 centimeters. It has multiple ports to connect with external sensors inclluding fuel sensor, temperature sensor, SOS button, relay for engine-cut, and so on.
Aidriving GPS tracker series
High accuracy GPS tracker – Model: F305

f305
Aidriving F305 is an amazing GPS tracker with latest tracking technology – broadcom dual frequency GPS chipset, which can ensure accuracy <2 meters And also strong at anti-interference and reducing position float It has multiple ports to connect with external sensors including fuel sensor, temperature sensor, SOS button, relay for engine-cut, and so on.
Dual-frequency GNSS ensures super accurate
Dual-frequency GNSS ensures fast and accurate locating 2 meters accuracy. Per the playback of our F305 GPS tracking, the accuracy is significant much better than most GPS trackers in markets. F305 supports all major GPS tracking systems in the world including GPS, Glonass, Galileo, IRNSS and QZSS.


multiple port

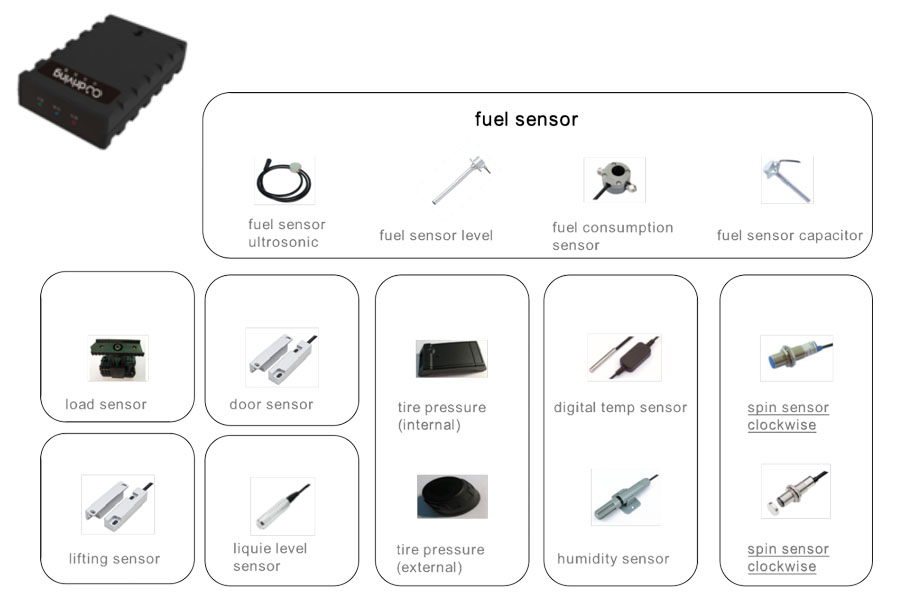

F305 has one RS232, one RS485, 2 IO input and 1 io output, which make the device supports multiple sensors including fuel sensor, temperature sensor, RFID reader, weight sensor, tire pressure sensor, fuel level sensor, etc. We have compared a lots of sensors with F305, while we can also integrate new sensors when customers need for projects.

Main Parameters
Technology
GNSS Dual-frequency locating, L1 and L5. Accuracy <30cm @ open sky area.
Supports GPS, BEIDOU, GLONASS, GALILEO, IRNSS
Multiple ports 1 x RS232 / 1 x RS485 / 1x SOS / 1 x TTS / 2 x input / 2 x output
Supports external sensor including fuel sensor, temperature sensor, RFID reader, etc.
Network
Version 1: 2G(GSM/GPRS) Quad band
Version 2: 4G, 3G and 2G compatible
GNSS
GNSS GPS, BEIDOU, GLONASS, GALILEO, IRNSS, QZSS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Accuracy < 2m
Hot start < 1s
Warm start < 25s
Cold start < 25s
Others
Bland data cache 1,000
Work temperature : -20 ~ 70 centigrade
Communication TCP
Input voltage range 9 – 90VDC with overvoltage protection
Internal Back-up battery 350 mAh Li-Ion battery 3.7V
Dimensions 78(L) x 48(W) x 18(H)mm
Weight 67g
FAQ
Can I order samples ?
Yes, we are glad to help you test our products. Samples can be sent through express including DHL, Fedex, Aramex, TNT, etc. Normally within 7 workdays you can receive samples after payment.
What is the MOQ?
For developed countries, from the second order for a model, we expect 100 units as MOQ.
What is the warranty ?
All goods we provide 12 months warranty, free repaire service is assured. And for bulk order equal over 250 pcs, we will provide 5% extra free units as a backup for you.
What is the lead-time?
Generally for quantity below 500 units, goods can be shipped within 3 workdays once payment received. For order quantity over 500 units, it will need 3 to 10 (depends on if there are enough inventory for a model)workdays for us to prepare goods.
Can I brand goods ?
Yes, free screen printing on tracker body, MOQ is 1000 pcs. If order quantity between 500 to 1000, it can be also done with a little cost. Color box can free branded for device order quantity equal over 500 pcs.
Can I be your exclusive agent in my Country?
Yes we are looking for long-term cooperation with local distributors. We can talk about details.
